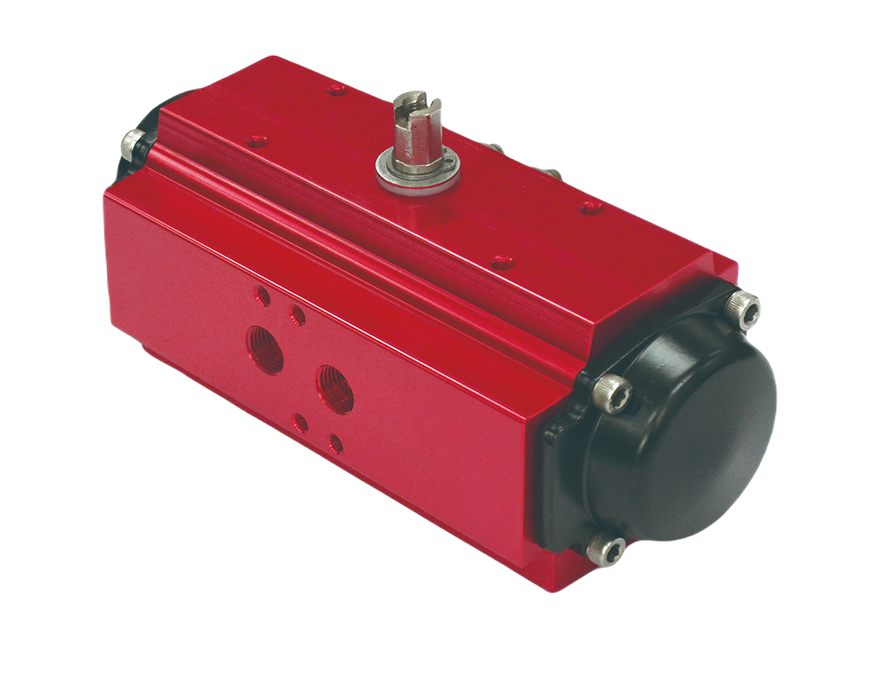

PDS Actuator (Rotary) Overview

We specialize in providing the best & reliable flow control solutions in the most challenging environments. PDS series Pneumatic Actuators are designed using Scotch-Yoke technology from PDS 50 to the largest of PDS 200.

Design

Simple and compact design. Available in both double-acting pneumatic and spring-return pneumatic configurations.

Technology

Utilizes Scotch-Yoke technology, known for producing higher torque at both end positions, making it ideal for valve and damper operations.

Spring Modules

Features different spring modules for various spring output torque values, enhancing safety and convenience.

Mounting Standards

Complies with international standards such as ISO 5211, DIN 3337, NAMUR, and VDI/VDE 3845 for easy and quick mounting of accessories.

Safety

Spring packages are pre-compressed to increase safety during operation.

Certifications

Certified to ATEX 2014/34/EU for use in potentially explosive environments. Suitable for use at SIL3 as a single device, meeting IEC 61508 standards.

Efficiency

High efficiency with low air consumption, reducing operational costs.

Durability

Designed for extremely long service life and reliable performance under various conditions.

Material

Housing made from anodized aluminum, offering durability and corrosion resistance.

Temperature Range

Standard operating temperature range from -20ºC to +80ºC, with options available for higher and lower temperatures upon consultation with the manufacturer.

Torque Ranges

Double Acting: 10Nm to 4000Nm, Spring Return: 5Nm to 1900Nm.

Drive Shaft

Available in various sizes and shapes to accommodate different valve shafts.

Accessory Mounting

Designed for faster and easier mounting of accessories such as solenoid valves, limit switches, and positioners.





GENERAL SPECIFICATION
PDS RANGE
MODEL	ISO 5211	OUTPUT TORQUE (Nm)		OUTPUT  TORQUE (lb-in)		SPRING END TORQUE (Nm)		SPRING END TORQUE (lb-in)		MAX STEM  DIA (mm)	MAX STEM  HEIGHT (mm)	OVER TRAVEL (Degree)
		MIN	MAX	MIN	MAX	MIN	MAX	MIN	MAX
PDS-45	F05/F07	5	40	44	354	5	15	44	133	SQ-11x11	15	±5°
PDS-50	F05/F07	10	80	89	708	10	30	89	266	SQ-11x11	15
PDS-55	F05/F07	15	110	133	974	12	40	106	354	SQ-17x17	20
PDS-70	F05/F07	30	220	266	1947	25	80	221	708	SQ-17x17	20
PDS-75	F07/F10	50	330	443	2921	35	120	310	1062	SQ-22x22	30
PDS-85	F05/F07	60	410	531	3629	45	160	398	1416	SQ-17x17	25
PDS-100	F07/F10	100	650	885	5753	75	260	664	2301	SQ-22x22	30
PDS-125	F10/F12	180	1250	1593	11063	150	460	1328	4071	SQ-27x27	35
PDS-160	F10/F14	360	2400	3186	21242	300	1000	2655	8851	SQ-36x36	60
PDS-200	F12/F16	675	4600	5974	40713	550	2000	4868	17701	SQ-46x46	60
CONFIGURATIONS
PD		DOUBLE ACTING-PNEUMATIC
PS		SPRING RETURN-PNEUMATIC
SR-FC		SPRING RETURN - FAIL CLOSE
SR-FO		SPRING RETURN - FAIL OPEN
OPERATING CONDITIONS
PRESURE RANGE		3.5 Bar to 8 Bar
MEDIA		INSTRUMENT AIR
TEMPERATURE RANGE - STANDARD OPERARTIONS		-20° C TO 80° C
COMPLIANCES
TORQUE BASE		MOUNTING DIMENSIONS AS PER ISO 5211
ACCESSORIES		LSB,SOV,Volume Booster,AFR & Positioners
TESTING		EN 15714-3-2009
INGRESS PROTECTION		IP-67
SAFETY		ATEX, SIL-3 & PED
