PLD SeriesThe PLD Series actuators are engineered for high-performance and reliability in various industrial applications.

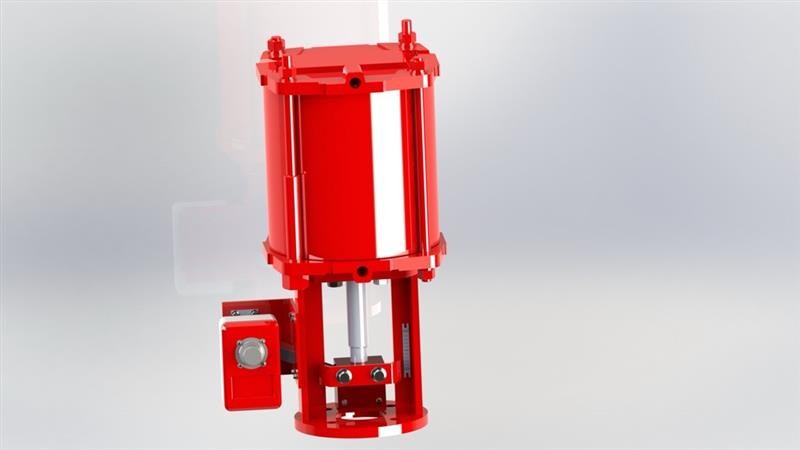

PLD Series piston actuator is designed for high-performance applications, ideal for ON/OFF or control functions in valve automation. The cylinder sizes range from 4 inches to 38 inches, making it a versatile solution for various valve types. It is especially well-suited for globe control valves due to its high thrust capability, stiffness, precision movement, and superior frequency response. The actuator offers bore sizes from 100mm to 980mm, with thrust forces ranging from 430 lbf to 97,500 lbf in the double-acting configuration. For single-acting applications, the thrust force depends on the spring selection. Manual override options are available via hydraulic cylinders or gearboxes for smaller sizes. Additionally, the actuator can be equipped with pneumatic accessories such as limit switches, solenoid valves, and positioners for enhanced functionality.
Features & Benefits
Durable Construction:
- Material: Made from extruded anodized aluminum for enhanced durability and corrosion resistance.
- Design: The one-piece body design with a molded-in seat increases pressure rating and operational capability in high-velocity environments.
High Torque Performance:
- Utilizes a Scotch Yoke mechanism to deliver higher torque, particularly at the start and end positions of operation.
Versatile Applications:
- Suitable for a wide range of industries, including oil and gas, water treatment, and manufacturing.
Precision Control:
- Engineered for precise on/off control, ensuring reliable and accurate operation in various applications.
Specifications
Temperature Range:
- Standard: -20ºC to +80ºC
- High Temperature: -10ºC to +140ºC
- Low Temperature: -45ºC to +80ºC
- Extreme Low: -55ºC to +80ºC
Corrosion Protection:
- Standard: Hard anodized body and epoxy-coated end caps.
- Body: Hard anodized, thickness 25 - 30µm
- End-Caps: Paint thickness 80 - 90µm
- Pinion Material: Carbon steel with ENP layer
- Bolt and Nuts: A2 (AISI 304)
- Corrosion Category C4: Fully coated actuators with hard anodized + polyurethane (PU) paint.
- Body: Hard anodized + PU paint, thickness 35µm
- End-Caps: Epoxy paint, thickness 80 - 90µm
- Pinion Material: CS with ENP layer
- Bolt and Nuts: A2 (AISI 304)
- Corrosion Category C5-1: Fully PU coated actuators.
- Body: Hard anodized + PU paint, thickness 35µm
- End-Caps: PU paint, thickness 80µm
- Pinion Material: AISI 304
- Bolt and Nuts: A2 (AISI 304)
- Corrosion Category C5-M: Fully PU coated actuators.
- Body: Hard anodized + PU paint, thickness 35µm
- End-Caps: PU paint, thickness 80µm
- Pinion Material: AISI 316
- Bolt and Nuts: A4 (AISI 316)
- Fully PTFE Coated Actuators:
- Layer Thickness: 15 - 20µm
- Pinion Material: AISI 316
- Bolt and Nuts: AISI 316
- Fully Nickel Plated (ENP) Actuators:
- Layer Thickness Body: 25 - 30µm (hard anodized + ENP)
- Layer Thickness End Caps: 80 - 90µm
- Pinion Material: Carbon steel with ENP layer
- Bolt and Nuts: AISI 304
- Fully Stainless Steel (AISI 316) Actuators:
- Suitable for immersion in fresh water.
- Pinion Material: AISI 316
- Bolt and Nuts: AISI 316
Applications
The PLD Series actuators are suitable for a wide range of applications, including:
- Oil and Gas: For controlling valves in pipelines and refining processes.
- Water Treatment: In water and wastewater treatment plants for regulating flow and pressure.
- Manufacturing: In automated production lines for precise control of machinery and equipment
SUSIN ITORK - PLD Series Output Thrust Data (KN) | ||||||||||||
Model | 2.8 Bar (40 Psi) | 3.5 Bar (50 Psi) | 4.2 Bar (60 Psi) | 5 Bar (70 Psi) | 5.5 Bar (80 PSi) | 7 Bar (100 Psi) | ||||||
Close (KN) | Open(KN) | Close (KN) | Open(KN) | Close (KN) | Open(KN) | Close (KN) | Open(KN) | Close (KN) | Open(KN) | Close (KN) | Open(KN) | |
PLD-100 | 2 | 1.9 | 2.5 | 2.3 | 2.8 | 2.6 | 3.5 | 3.3 | 3.9 | 3.6 | 4.9 | 4.6 |
PLD-125 | 3.1 | 3 | 3.9 | 3.7 | 4.4 | 4.2 | 5.5 | 5.3 | 6.1 | 5.8 | 7.7 | 7.4 |
PLD-160 | 5.1 | 4.9 | 6.3 | 6.2 | 7.2 | 7.1 | 9 | 8.8 | 9.9 | 9.7 | 12.7 | 12.4 |
PLD-180 | 6.4 | 6.3 | 8 | 7.9 | 9.2 | 9 | 11.4 | 11.2 | 12.6 | 12.3 | 16 | 15.7 |
PLD-200 | 7.9 | 7.8 | 9.9 | 9.7 | 11.3 | 11.1 | 14.1 | 13.9 | 15.5 | 15.3 | 19.8 | 19.5 |
PLD-230 | 10.5 | 10.3 | 13.1 | 12.8 | 14.9 | 14.7 | 18.7 | 18.3 | 20.6 | 20.2 | 26.2 | 25.7 |
PLD-250 | 12.4 | 12.2 | 15.5 | 15.2 | 17.7 | 17.4 | 22.1 | 21.7 | 24.3 | 23.9 | 30.9 | 30.4 |
PLD-280 | 15.5 | 15.3 | 19.4 | 19.1 | 22.2 | 21.9 | 27.7 | 27.3 | 30.5 | 30.1 | 38.8 | 38.3 |
PLD-300 | 18.4 | 18.1 | 23 | 22.7 | 26.3 | 25.9 | 32.8 | 32.4 | 36.1 | 35.6 | 45.9 | 45.3 |
PLD-350 | 21.6 | 21.4 | 27 | 26.7 | 30.9 | 30.5 | 38.6 | 38.2 | 42.5 | 42 | 54.1 | 53.4 |
PLD-380 | 29.9 | 29.6 | 37.4 | 37 | 42.7 | 42.3 | 53.4 | 52.9 | 58.7 | 58.2 | 74.7 | 74.1 |
PLD-430 | 37.5 | 37.2 | 46.9 | 46.4 | 53.6 | 53.1 | 67 | 66.3 | 73.7 | 73 | 93.8 | 92.9 |
PLD-480 | 46.1 | 45.7 | 57.6 | 57.2 | 65.8 | 65.3 | 82.3 | 81.7 | 90.5 | 89.9 | 115.2 | 114.4 |
PLD-530 | 56.6 | 56.1 | 70.7 | 70.1 | 80.8 | 80.1 | 101 | 100.2 | 111.1 | 110.2 | 141.4 | 140.2 |
PLD-580 | 69.2 | 68.7 | 86.5 | 85.9 | 98.9 | 98.2 | 123.6 | 122.8 | 136 | 135 | 173.1 | 171.9 |
PLD-630 | 81.2 | 80.7 | 101.4 | 100.8 | 115.9 | 115.2 | 144.9 | 144 | 159.4 | 158.4 | 202.9 | 201.6 |
PLD-680 | 94.1 | 93.6 | 117.6 | 117 | 134.4 | 133.7 | 168 | 167.1 | 184.8 | 183.8 | 235.2 | 233.9 |
PLD-730 | 109.8 | 109.1 | 137.2 | 136.4 | 156.9 | 155.8 | 196.1 | 194.8 | 215.7 | 214.3 | 274.5 | 272.7 |
PLD-780 | 123.5 | 122.7 | 154.3 | 153.4 | 176.4 | 175.4 | 220.5 | 219.2 | 242.5 | 241.1 | 308.6 | 306.9 |
PLD-830 | 130.8 | 129.9 | 163.4 | 162.4 | 186.8 | 185.6 | 233.5 | 232 | 256.8 | 255.2 | 326.9 | 324.8 |
PLD-880 | 153.2 | 152.4 | 191.5 | 190.4 | 218.8 | 217.7 | 273.6 | 272.1 | 300.9 | 299.3 | 383 | 380.9 |
PLD-930 | 171.1 | 170 | 213.9 | 212.5 | 244.4 | 242.8 | 305.5 | 303.5 | 336.1 | 333.9 | 427.7 | 425 |
PLD-980 | 188.1 | 186.9 | 235.1 | 233.7 | 268.6 | 267.1 | 335.8 | 333.8 | 369.4 | 367.2 | 470.1 | 467.3 |
PLD-1100 | 239.4 | 237.9 | 299.2 | 297.4 | 341.9 | 339.9 | 427.4 | 424.9 | 470.2 | 467.4 | 598.4 | 594.8 |
SUSIN ITORK - PLD Series Output Thrust Data (Lbf) | ||||||||||||
Model | 2.8 Bar (40 Psi) | 3.5 Bar (50 Psi) | 4.2 Bar (60 Psi) | 5 Bar (70 Psi) | 5.5 Bar (80 PSi) | 7 Bar (100 Psi) | ||||||
Close Thrust | Open Thrust (lbf) | Close Thrust | Open Thrust (lbf) | Close Thrust | Open Thrust (lbf) | Close Thrust | Open Thrust (lbf) | Close Thrust | Open Thrust (lbf) | Close Thrust | Open Thrust (lbf) | |
(lbf) | (lbf) | (lbf) | (lbf) | (lbf) | (lbf) | |||||||
PLD-100 | 444.7 | 416.9 | 555.9 | 521.2 | 667.1 | 625.4 | 794.2 | 744.5 | 873.6 | 819 | 1,111.80 | 1,042.40 |
PLD-125 | 694.9 | 667.1 | 868.6 | 833.9 | 1,042.40 | 1,000.70 | 1,240.90 | 1,191.30 | 1,365.00 | 1,310.40 | 1,737.30 | 1,667.80 |
PLD-160 | 1,138.50 | 1,110.70 | 1,423.20 | 1,388.40 | 1,707.80 | 1,666.10 | 2,033.10 | 1,983.50 | 2,236.40 | 2,181.80 | 2,846.30 | 2,776.80 |
PLD-180 | 1,441.00 | 1,413.20 | 1,801.20 | 1,766.40 | 2,161.40 | 2,119.70 | 2,573.10 | 2,523.50 | 2,830.40 | 2,775.80 | 3,602.40 | 3,532.90 |
PLD-200 | 1,779.00 | 1,751.20 | 2,223.70 | 2,189.00 | 2,668.40 | 2,626.70 | 3,176.70 | 3,127.10 | 3,494.40 | 3,439.80 | 4,447.40 | 4,377.90 |
PLD-230 | 2,352.70 | 2,307.10 | 2,940.80 | 2,883.90 | 3,529.00 | 3,460.70 | 4,201.20 | 4,119.90 | 4,621.30 | 4,531.90 | 5,881.70 | 5,767.80 |
PLD-250 | 2,779.60 | 2,734.10 | 3,474.50 | 3,417.60 | 4,169.40 | 4,101.10 | 4,963.60 | 4,882.30 | 5,460.00 | 5,370.50 | 6,949.10 | 6,835.20 |
PLD-280 | 3,486.80 | 3,441.20 | 4,358.40 | 4,301.50 | 5,230.10 | 5,161.80 | 6,226.30 | 6,145.00 | 6,849.00 | 6,759.50 | 8,716.90 | 8,603.00 |
PLD-300 | 4,131.80 | 4,074.10 | 5,164.70 | 5,092.70 | 6,197.60 | 6,111.20 | 7,378.10 | 7,275.20 | 8,116.00 | 8,002.70 | 10,329.40 | 10,185.30 |
PLD-350 | 4,860.80 | 4,803.20 | 6,076.00 | 6,004.00 | 7,291.30 | 7,204.80 | 8,680.10 | 8,577.10 | 9,548.10 | 9,434.90 | 12,152.10 | 12,008.00 |
PLD-380 | 6,719.50 | 6,661.80 | 8,399.30 | 8,327.30 | 10,079.20 | 9,992.70 | 11,999.00 | 11,896.10 | 13,198.90 | 13,085.70 | 16,798.70 | 16,654.60 |
PLD-430 | 8,431.10 | 8,352.60 | 10,538.80 | 10,440.80 | 12,646.60 | 12,528.90 | 15,055.50 | 14,915.40 | 16,561.00 | 16,406.90 | 21,077.70 | 20,881.50 |
PLD-480 | 10,362.40 | 10,283.90 | 12,953.00 | 12,854.90 | 15,543.60 | 15,425.90 | 18,504.30 | 18,364.20 | 20,354.70 | 20,200.60 | 25,906.00 | 25,709.80 |
PLD-530 | 12,720.00 | 12,608.80 | 15,900.00 | 15,761.10 | 19,080.00 | 18,913.30 | 22,714.30 | 22,515.80 | 24,985.80 | 24,767.40 | 31,800.10 | 31,522.10 |
PLD-580 | 15,565.50 | 15,454.30 | 19,456.80 | 19,317.80 | 23,348.20 | 23,181.40 | 27,795.50 | 27,596.90 | 30,575.00 | 30,356.60 | 38,913.60 | 38,635.70 |
PLD-630 | 18,245.00 | 18,133.80 | 22,806.20 | 22,667.30 | 27,367.50 | 27,200.70 | 32,580.30 | 32,381.80 | 35,838.40 | 35,620.00 | 45,612.50 | 45,334.50 |
PLD-680 | 21,149.50 | 21,038.30 | 26,436.90 | 26,297.90 | 31,724.20 | 31,557.50 | 37,766.90 | 37,568.40 | 41,543.60 | 41,325.20 | 52,873.70 | 52,595.80 |
PLD-730 | 24,684.10 | 24,524.00 | 30,855.20 | 30,655.00 | 37,026.20 | 36,786.00 | 44,078.80 | 43,792.90 | 48,486.70 | 48,172.20 | 61,710.30 | 61,310.10 |
PLD-780 | 27,756.20 | 27,596.10 | 34,695.20 | 34,495.10 | 41,634.30 | 41,394.10 | 49,564.60 | 49,278.70 | 54,521.10 | 54,206.60 | 69,390.40 | 68,990.20 |
PLD-830 | 29,395.90 | 29,208.00 | 36,744.90 | 36,510.00 | 44,093.80 | 43,812.00 | 52,492.60 | 52,157.10 | 57,741.90 | 57,372.80 | 73,489.70 | 73,020.00 |
PLD-880 | 34,440.60 | 34,252.70 | 43,050.80 | 42,815.90 | 51,660.90 | 51,379.10 | 61,501.10 | 61,165.50 | 67,651.20 | 67,282.10 | 86,101.50 | 85,631.80 |
PLD-930 | 38,465.50 | 38,215.30 | 48,081.90 | 47,769.20 | 57,698.20 | 57,323.00 | 68,688.40 | 68,241.70 | 75,557.20 | 75,065.80 | 96,163.70 | 95,538.30 |
PLD-980 | 42,278.00 | 42,027.90 | 52,847.50 | 52,534.80 | 63,417.00 | 63,041.80 | 75,496.50 | 75,049.70 | 83,046.10 | 82,554.70 | 1,05,695.10 | 1,05,069.60 |
